UGAvailable now
ME7Tune
VR6
The 12v VR6 suite: editor, flasher and logger. 110 named maps and values, the load caps opened up for boost, launch control and a MAF housing calculator — all working against a real 021906018.
$250 · One payment, unlimited cars · Nothing phones home

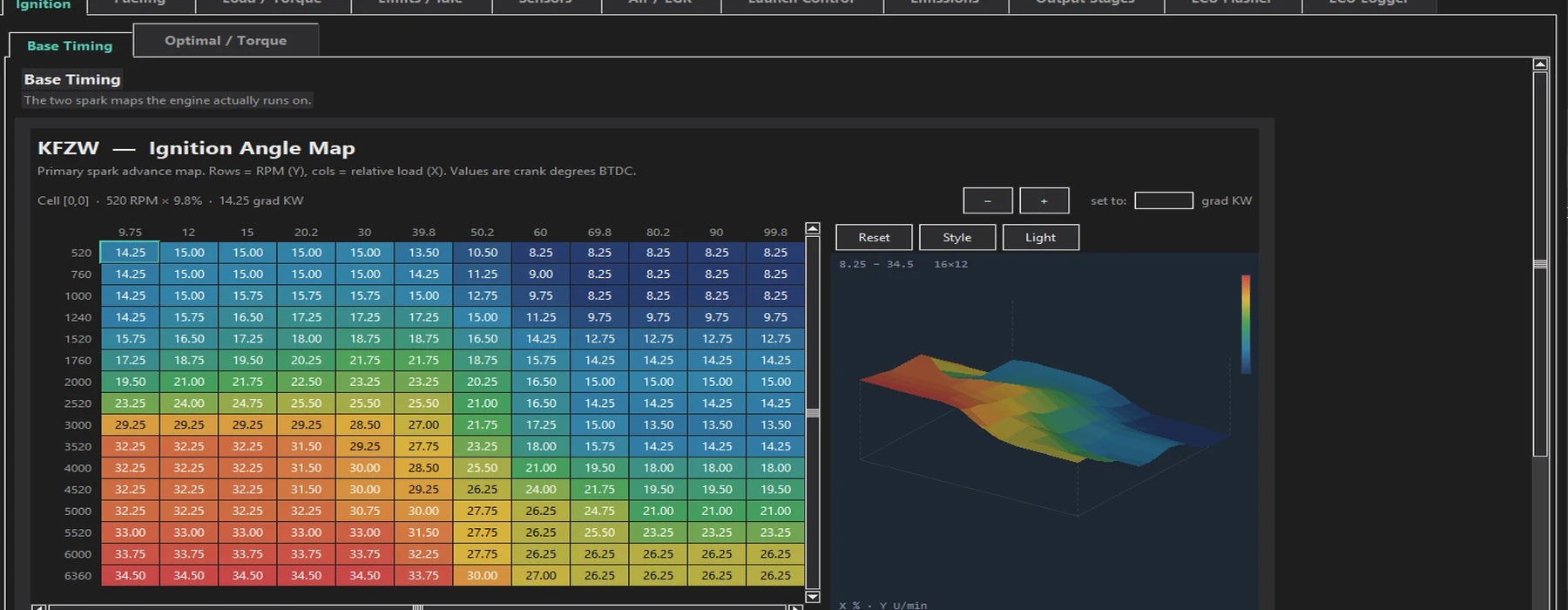

KFZW base ignition on the 12v. Table and surface side by side, the same as every other platform.
What it
does
021906018 — the 12v VR6, 1999.5 to 2002, manual. Everything below works against a real stock file.
Boost
Load caps opened up
The VR6 is naturally aspirated from the factory, so the stock calibration caps requested load where a stock engine would never go. Those ceilings are editable here — the volumetric flow limits across the rev range, and the two byte-level caps patched into the code. Raise them and the ECU will actually ask for the air a turbo or supercharger can supply.
Calibration
110 named maps and values
Timing, fuelling, the torque chain, idle and sensors — named, scaled and checked cell by cell against the stock binary. Each one has a plain-English note on what it does and what changing it will do, not just the factory German label.
Tools
Launch control & MAF rescale
The 2-step patch installs with ten editable parameters — launch rpm, retard, cut duration, arming conditions — and comes back out cleanly. The MAF calculator rescales the sensor curve by area when you fit a different housing, which you will if you are moving serious air.

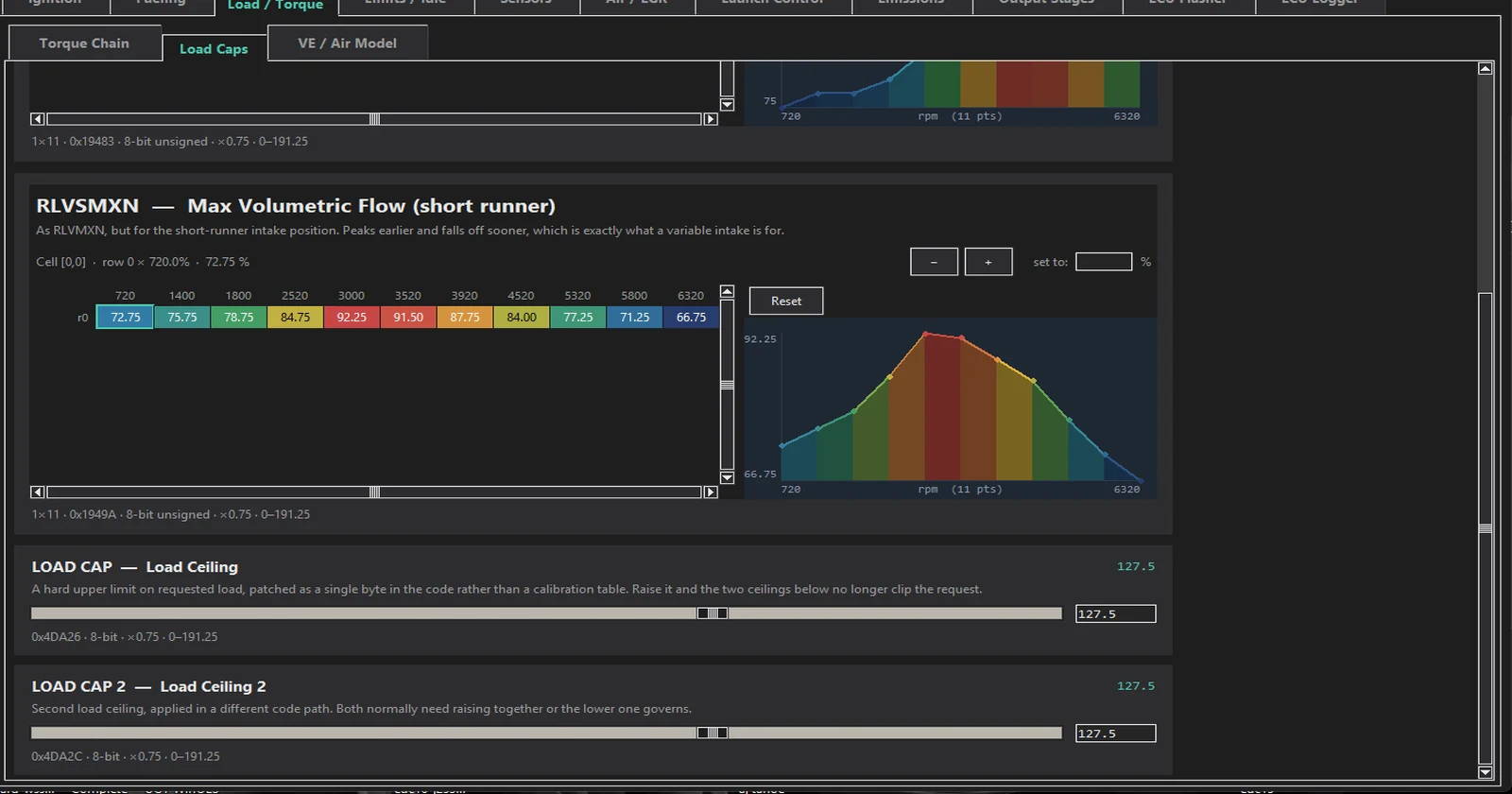

The breathing curve across the rev range, and the two byte-level ceilings under it. Both normally need raising together.
Also in
Configuration editors
Output stages and the exhaust-side configuration are editable as named switches rather than raw bytes, with the ME7.1 bit layout built in. Useful when the hardware on the car no longer matches what the factory expected.
Same cable
Flashing and logging
Both use the same code that already runs the other platforms, over any J2534 cable that does K-line. The VR6's logger definitions are bundled, 520 channels of them.

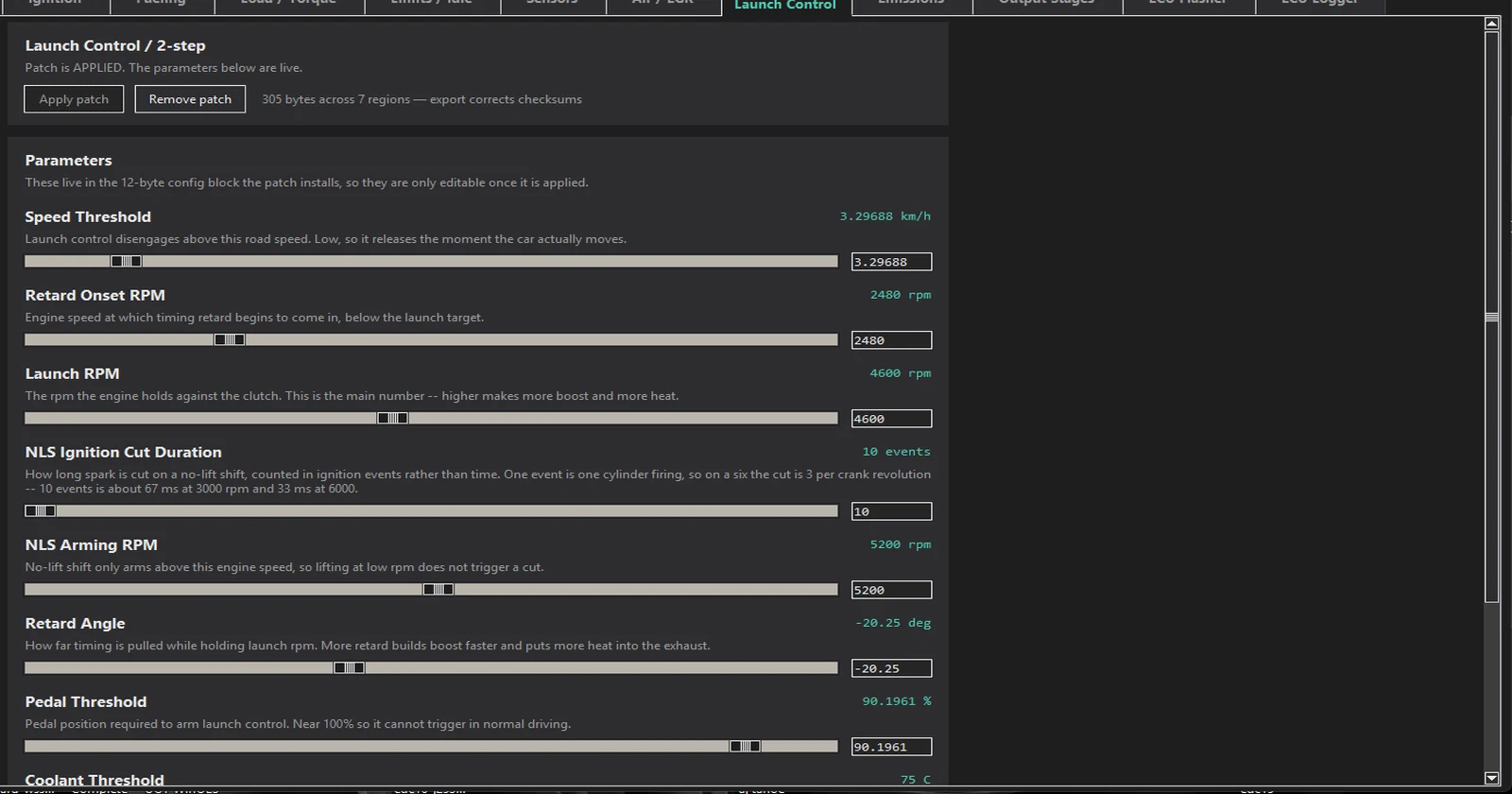

Patched in, with launch rpm, retard and the arming conditions all editable. It comes back out cleanly too.

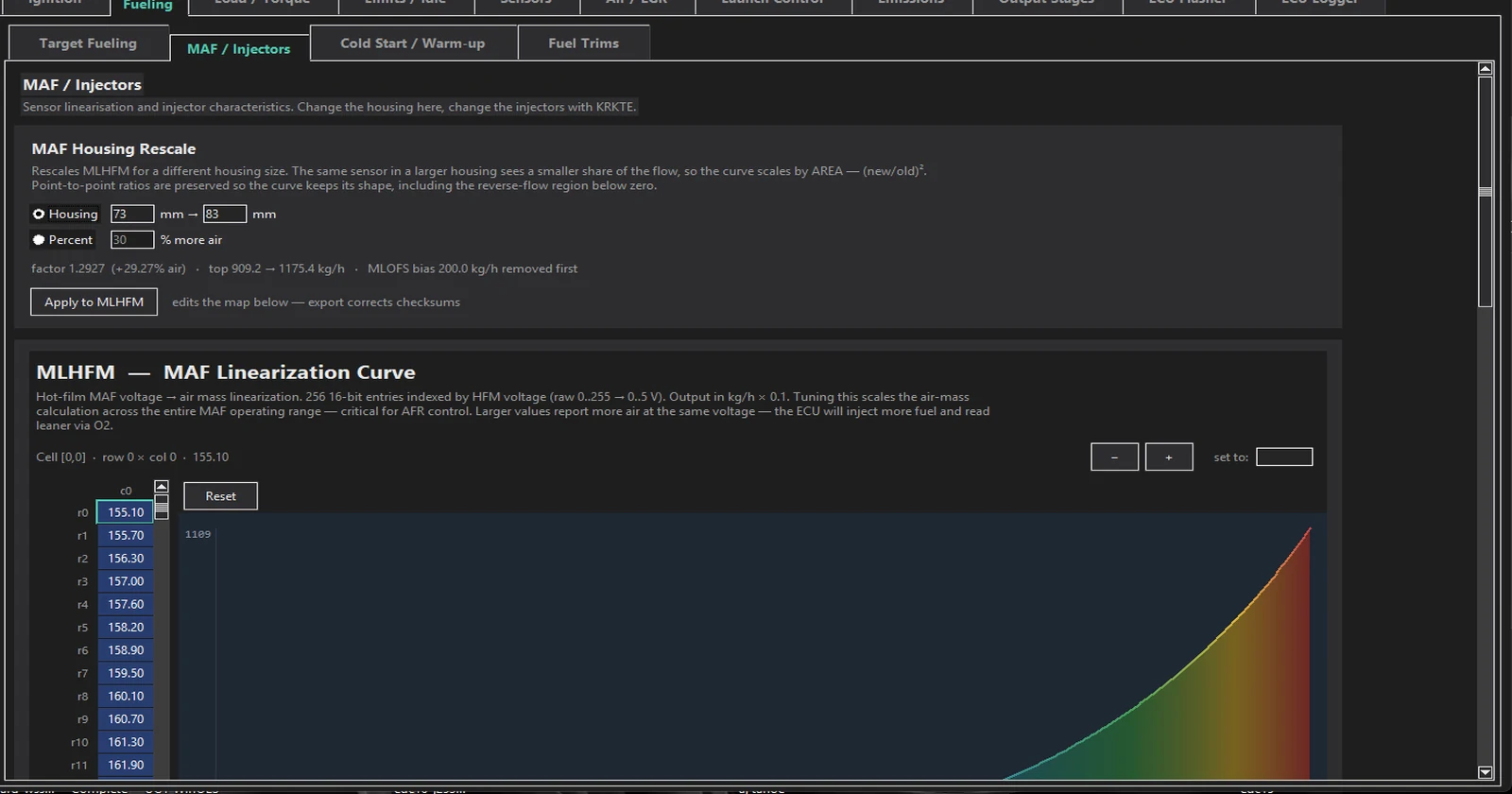

Housing calculator above the curve it rescales — 73 to 83 mm is 29% more air, because the scaling is by area.
Questions before you buy? Get in touch: say which suite you mean, ME7Tune VR6, and what the car is running.
Available today
Buy
Sold direct, by email. No cart and no account: say which suite you want, ME7Tune VR6, and which ECU you have, and I will send the file and the invoice.
ME7Tune VR6
$250
One payment, unlimited cars
- The full suite: editor, flasher, logger
- Load caps, launch control and the MAF calculator
- No per-car credits, no per-VIN fees
- Updates and email support
Locked to one PC, not to one car. You send a hardware ID, I send back an activation
file. No internet check, no dongle, nothing phoning home.
Try it
here
Three real maps out of the 12v file, and the launch control parameters. Edit them the way you would in the suite — this is the actual data, not a mock-up.
Click a cell, then use − / + or type a value. Drag across cells to select a block and change them together.
Demo only — nothing is saved and there is no export. The full suite reads and writes the ECU, corrects checksums and covers all 110 maps and values.
